Elbows, tees, reducers, flanges and end caps shipped with your pipe order — one package, one inspection.
A pipeline is only as good as its weakest fitting. We supply the complete fitting package together with the pipe: butt-weld elbows, tees, reducers and caps to ASME B16.9, plus flanges to ASME B16.5 or EN 1092-1, with gaskets and fasteners to match.
Wall thickness is the specification most often mismatched. Butt-weld fittings are made from pipe of the same schedule as the line, so the bore stays smooth and the pressure rating is uniform. We check the schedule on your BOM before production, not after laying.
Flanges are selected by pressure class and facing, not by pipe wall thickness. We can supply weld-neck, slip-on, blind, threaded and lap-joint types with raised face or ring-type joint facings, and we confirm the drilling matches your valve and equipment connections.
Everything is packed in the same consignment as the pipes, with one packing list and one inspection. Send us your BOM — we will quote the whole package and flag any specification mismatch we find.
| Product Range | Elbows, tees, reducers, caps, flanges, gaskets and fasteners |
| Size Range | DN15 – DN2000 (made to drawing for larger) |
| Wall Series | SCH20 – XXS, matched to the connecting pipe |
| Bend Radius | Long radius 1.5D, short radius 1.0D |
| Material | A234 WPB, 20#, Q355B, 304 / 316L, A234 WP11 / WP22 |
| Fitting Standard | ASME B16.9, GB/T 12459, GB/T 13401 |
| Flange Standard | ASME B16.5, EN 1092-1, JIS B2220, HG/T 20592 |
| Surface Treatment | Black painting, anti-rust oil, galvanised, or 3PE / FBE coating |
| Bevel End | Per ASME B16.25 for butt welding |
| Certificate | MTC EN 10204 3.1, UT / MT / PT reports on request |
Every pipe passes through the same controlled route, with inspection points at each stage.
Check size, schedule, material and standard consistency across the package.
Cut seamless or welded pipe to length with allowance.
Elbows pushed over a mandrel, tees formed by hydraulic bulging.
Normalising or stress relieving per material and standard.
Ends machined to ASME B16.25.

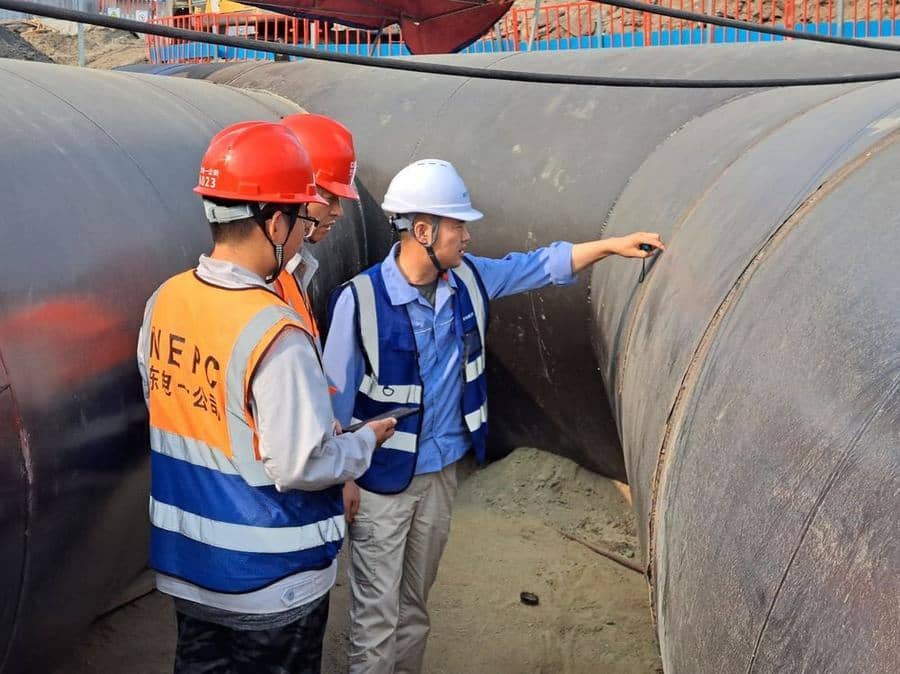

Blasting, coating, dimensional and NDT checks, marking.

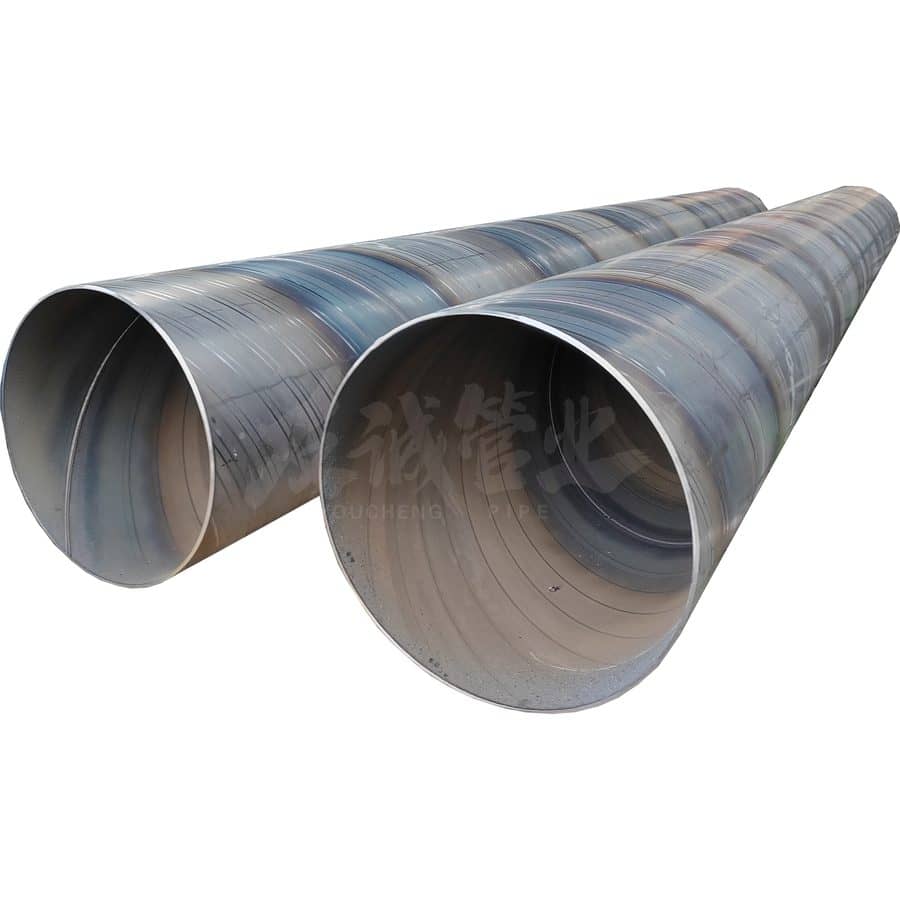

Double-sided submerged arc spiral welded pipe for water, structure and piling.
FBE / 2FBE / 3PE / TPEP systems for buried gas, water and sewage lines.
Direct-buried polyurethane pre-insulated pipe for district heating networks.
Steel-jacket steam insulation for high-temperature steam transmission.
